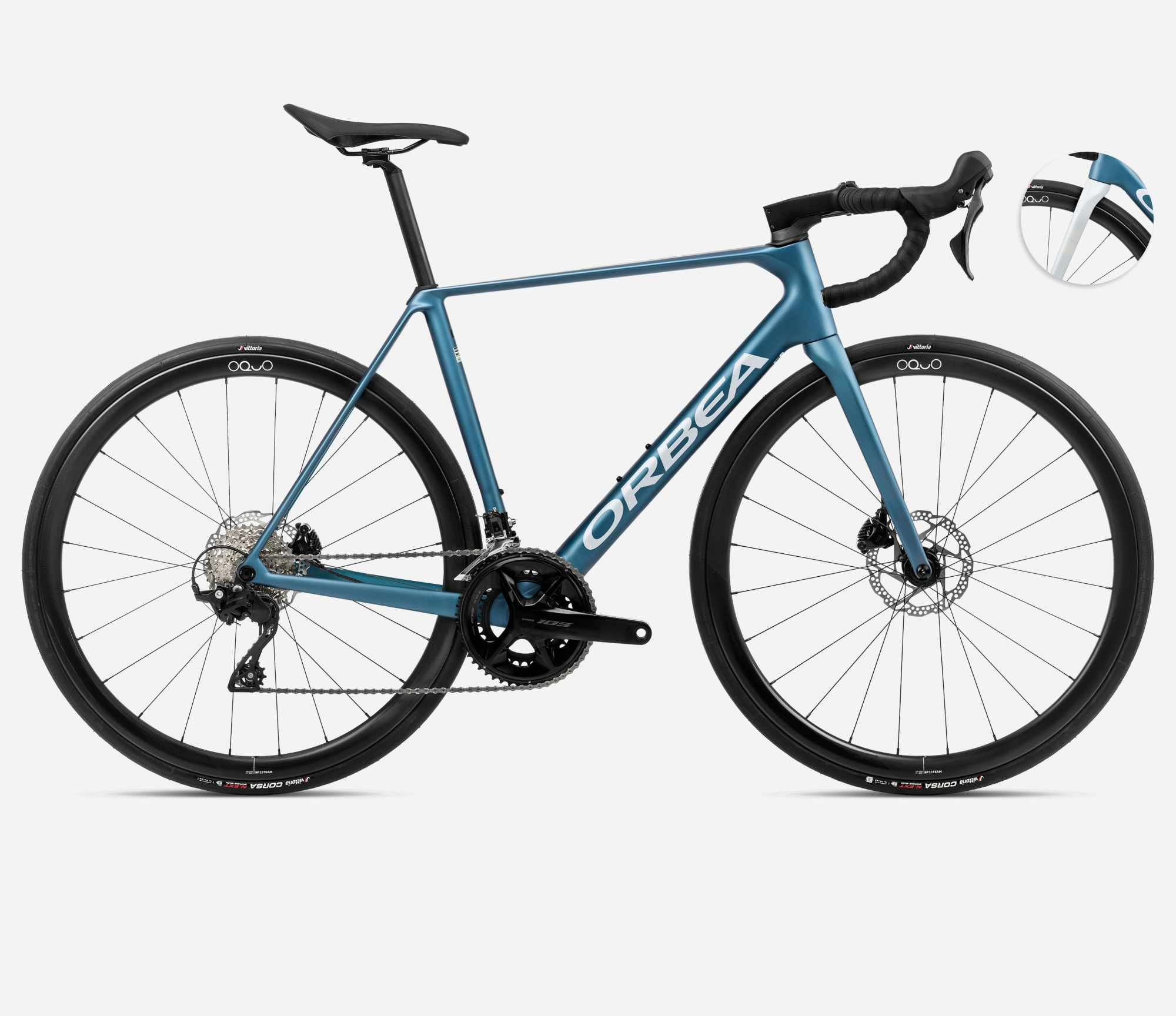

Orbea Orca M35

Orbea Orca M35
  • Color: Ivory White-Burgundy -Vulcano
  • Color: Slate Blue-Halo Silver
  • Color: Vulcano-Black - Black
  • Color: Wine Red - Titanium
  • Color: Wine Red - Titanium
$3,799.00
Color: Ivory White-Burgundy -Vulcano
Size: Select size
Wheel Size: 700c
Please select options Unavailable

Details

Orca isn’t just light. It is 6.7kg of climbing technology designed to change how you reach the top. The feeling of a bike this light and efficient is unbeatable, and this instant acceleration, vibration absorption and responsive handling come from a frame which knows where it needs to be light and where it needs to be stiff.

POWER SPINE
The lower spine of the frame handles the large majority. of torsional and lateral loads

ICR Plus
Internal Cable Routing is carefully guided along the best path under the stem and through the head tube, with no rub or rattle, and is optimized for both traditional and electronic shifting systems.

32MM TIRE CLEARANCE
Modern road riders have discovered the advantages of bigger tires on rough surfaces.

Sizes:
495153555760
Seat Tube460 480500520540570
Top Tube522.7 535.9548.5560.4575.1590
Head Tube118.2 134.6152.9173.1191.2218.3
Chainstay408 408408408408408
BB Height (25-622)268.5 268.5270.5270.5270.5270.5
BB Drop72 7270707070
Wheelbase975.4 980981.2991.41001.91015.6
Head Angle71.5 72.272.87373.273.2
Seat Angle74 73.773.573.573.273.2
Standover (22-622)748.5 767.5788.5808.5826.5852.5
Reach375 380385391398404
Stack515 533552572590616
Fork Length365 365365365365365
Rake48 4843434343
Trail62.8 58.459.958.757.457.4
Sizes:
Size47495153555760
Rider Height (CM)155 - 160 160 - 166167 - 172173 - 179180 - 185186 -191192 - 207
Rider Height (IN)61.1" - 63.0" 63.0" - 65.4"65.7" - 67.7"68.1" - 70.5"70.9" - 72.8"73.2" - 75.2"75.6" - 81.5"

Specs

Fork Orbea Orca OMR ICR 2024, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1.
Stem OC Road Performance RP21, -6º
Frame Orbea Orca carbon OMR 2024, monocoque construction, HS 1,5", BB 386mm, powermeter compatible, Rear Thru Axle 12x142mm, thread M12x2 P1, internal cable routing.
Tires Vittoria Corsa N.Ext G2.0 Foldable 700x28c
Brakes Shimano R7170 Hydraulic Disc
Saddle Fizik Aliante R5
Wheels OQUO Road Performance RP35 TEAM Carbon
Headset FSA 1-1/2" Integrated Aluminium Cup
Crankset Shimano 105 R7100 34x50t
Seatpost Carbon, 27.2mm, Setback 20
Shifters Shimano R7120
Rear Derailleur Shimano 105 R7100
Front Derailleur Shimano 105 R7100

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Ivory White-Burgundy -Vulcano / 51cm / 700c 8434446507366 R10951AJ ORC43370995T
Slate Blue-Halo Silver / 53cm / 700c 8434446507519 R10953AL ORC32542719T
Vulcano-Black - Black / 57cm / 700c 8434446507564 R10957AK ORC35717702S
Wine Red - Titanium / 55cm / 700c 8434446684241 R10955CB ORC29349737S
