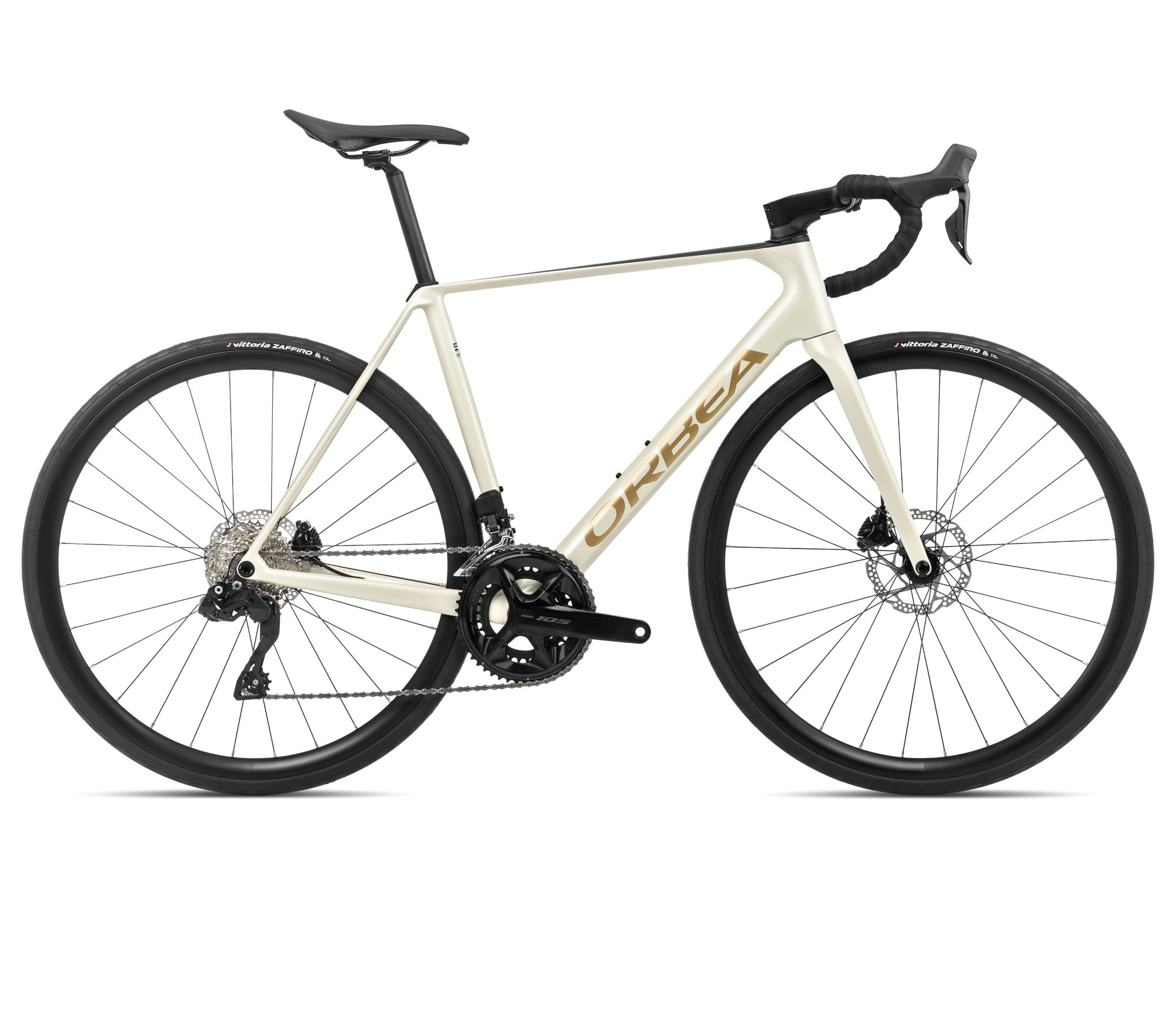

Orbea Orca M30i

Orbea Orca M30i
  • Color: Ivory White-Burgundy -Vulcano
  • Color: Slate Blue-Halo Silver
  • Color: Vulcano-Black - Black
$3,599.00
Color: Ivory White-Burgundy -Vulcano
Size: Select size
Wheel Size: 700c
Please select options Unavailable

Details

PRAISE THE LIGHT.

Orca isn’t just light. It is 6.7kg of climbing technology designed to change how you reach the top.

The feeling of a bike this light and efficient is unbeatable, and this instant acceleration, vibration absorption and responsive handling come from a frame which knows where it needs to be light and where it needs to be stiff. Welcome the ultimate climbing machine!

DOMINATE THE CLIMBS
Achieving Orca´s light weight required many marginal gains, focusing on the details and using the best materials across the range. Considering the bike as a package means working with component and wheel designers right from the start to optimize stiffness and weight.

RIGID IN ALL THE RIGHT PLACES
But having the lightest bike is worth nothing if it isn’t stiff and efficient. When we designed Orca, we started with a target rigidity to ensure that even the strongest climbers could be sure of efficient power transmission. Then we designed Orca to be as light as possible without compromising that number.

THE FEEL OF FREEDOM
There is indeed just something special about the feel of a lightweight bike. We love the instant acceleration when you stamp on the pedals and the responsive, agile handling as you carve through the turns.

NO TRADE-OFFS
Our clever frame design means that stiff doesn't have to be uncomfortable. Rounder frame sections help reduce vibrations, saving energy on longer rides and offering you an advantage on that final climb. Wider clearance allows for tires of up to 32mm- maximising traction and compliance.

PERFORMANCE DESIGN
Orca is built on our understanding of performance and design, reflecting our belief that bikes should look great and ride better. Orca’s minimal, timeless lines give it its distinctive style and cover some very modern technology.

Sizes:
FRAME SIZE47495153555760
SEAT TUBE (C-T)440 460480500520540570
TOP TUBE (EFF)510,3 522,7535,9548,5560,4576,1590
HEAD TUBE110,5 118,2134,6152,9173,1191,2218,3
CHAINSTAY408 408408408408408408
BB HEIGHT (25-622)268,5 268,5268,5270,5270,5270,5270,5
BB DROP72 727270707070
WHEELBASE971,8 975,4980981,2991,41001,91015,6
HEAD ANGLE71 71,572,272,87373,273,2
SEAT ANGLE74,5 7473,773,573,573,273,2
STANDOVER (25-622)736,5 748,5767,5788,5808,5826,5852,5
REACH370 375380385391398404
STACK506 515533552572590616
FORK LENGTH365 365365365365365365
RAKE48 484843434343
TRAIL66,0 62,858,459,958,757,457,4
Sizes:
FRAME SIZERIDER HEIGHT (CM)RIDER HEIGHT (IN)
47155 - 160 5'1" - 5'3"
49160 - 166 5'3" - 5'5"
51167 - 172 5'5" - 5'7"
53173 - 179 5'8" - 5'10"
55180 - 185 5'10" - 6'0"
57186 - 191 6'1" - 6'3"
60192 - 207 6'3" - 6'9"

Specs

Pedals Sold Separately
Fork Orbea Orca OMR ICR 2024, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1.
Stem OC Road Performance RP21, -6º
Frame Orbea Orca carbon OMR 2024, monocoque construction, HS 1,5", BB 386mm, powermeter compatible, Rear Thru Axle 12x142mm, thread M12x2 P1, internal cable routing.
Tires Vittoria Zafiro V Rigid bead 700x28c
Brakes Shimano R7170 Hydraulic Disc
Saddle Fizik Aliante R5
Wheels Alloy, Tubeless, 700c, 19c, 28H
Headset FSA 1-1/2" Integrated Aluminium Cup
Crankset Shimano 105 R7100 34x50t
Seatpost Carbon, 27.2mm, Setback 20
Shifters Shimano Di2 R7170
Rear Derailleur Shimano 105 Di2 R7150
Front Derailleur Shimano 105 Di2 R7150
Chain Shimano M6100
Handlebars OC Road Perfornace RP31-R, Rise 15, Reach 70, Drop 125
Tape/Grips Orbea Eva
Cassette/Freewheel Shimano 105 R7100 11-34t 12-Speed

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Vulcano-Black - Black / 53cm / 700c 8434446492709 R10853AK ORC36817712S
Ivory White-Burgundy -Vulcano / 53cm / 700c 8434446492693 R10853AJ ORC44838558T
Vulcano-Black - Black / 55cm / 700c 8434446492921 R10855AK ORC3648223S
Slate Blue-Halo Silver / 55cm / 700c 8434446492938 R10855AL ORC33607603T
